Descrizione

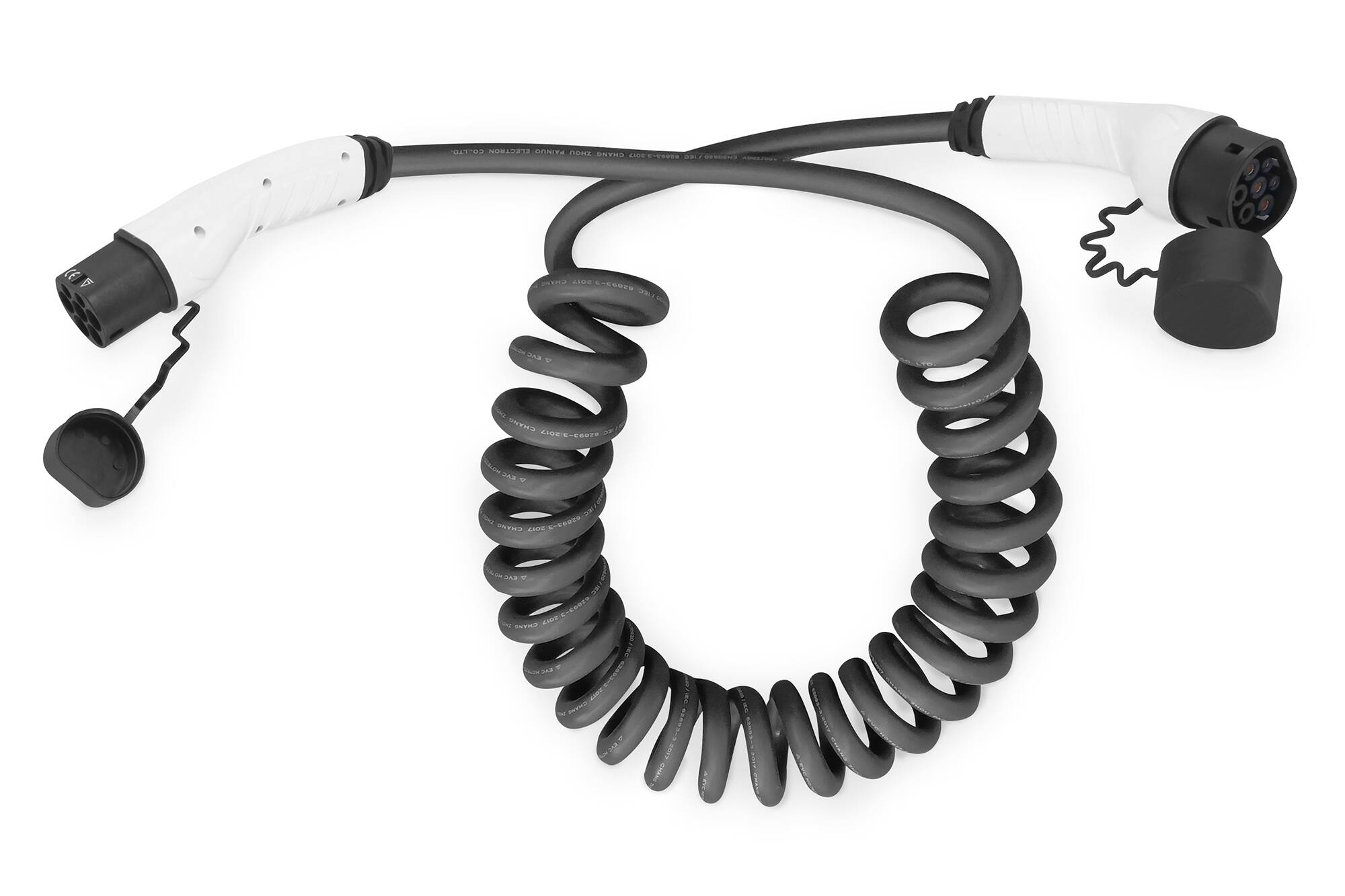

The DIGITUS DK-3P16-S-050 car charging cable allows you to easily connect any vehicle with type 2 plug to public charging stations or wallboxes with charging socket. The type 2 charging cables are certified according to EN 62196-1:2014, EN 62196-2:2017 and protection class IP55.
Dettagli tecnici
Cable length : 5m
Cable diameter : 5G6mm.+2*0.5mm.
Outer diameter : 16,8mm +/- 0,5mm
Color : Black
Jacket : TPU
Connector : EN 62196-2 type 2
Rated voltage : 415V
Rated power : 11kW
Rated current : 16A
Number of phases : 3 phase
Contact resistance : 0.5m. (Max)
Insulation resistance : 1000M. (Min) @ DC500V
Resistive voltage : 2000V
Resistance coding : 220.
Terminal temperature rise : .50K
Standard : EN 62196-1:2014, EN 62196-2:2017
Working temperature : -30..+50.
Humidity at work : 5% -95% non-condensed.
Flammability standard : UL94 V-0
IP protection : IP55
